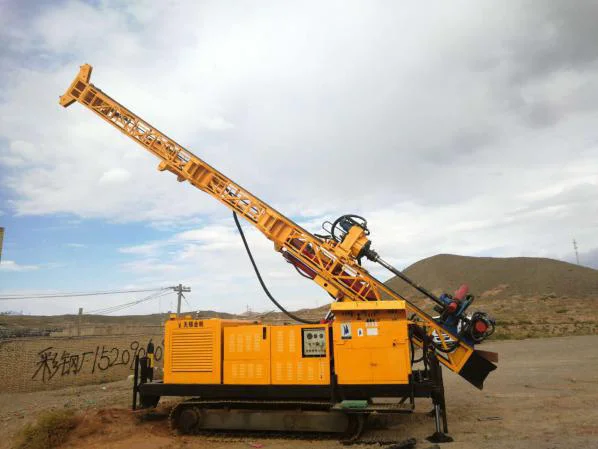

YGL-500 Reverse Circulation Drilling Rig
$357,000.00
99 people are viewing this product right now
🔥 5 items sold in last 3 hours
Technical specification：
| Model | YGL-500RC | |
| Drill rig weight(crawler mounted) | kg | 12000 |
| Engine Power | kW | 132 |
| Length × Width × Height (normal) | mm | 7650x2250x3217 |
| Ambient Temperature Range | °C | -10～38 |
| Drill Ability | ||
| Nominal Drill Depth | m | 500 |
| End-hole Diameter | mm | 150 |
| Drill head output | ||
| Max Output Torque | N.m | 12000 |
| Output Rotation Speed(continuity) | rpm | 30 / 60 |
| Output Rotation Speed(interval) | rpm | 52 / 104 |
| Feeding | mm | 7000 |
| Thrust Force | kN | 100 |
| Lifting Capacity | kN | 160 |
| Pipe-puller Device Output | ||
| Output Rotation Speed | rpm | 40 |
| Max Output Torque | N.m | 30000 |
| Hole-through Diameter | mm | 370 |
| Main Winch | ||
| Pull Force of the first Layer | kN | 70 |
| Rope Diameter | mm | 19 |
| Rope Capacity | m | 80 |
| Auxiliary Winch | ||
| Pull Force of the first Layer | kN | 20 |
| Rope Diameter | mm | 14 |
| Rope Capacity | m | 60 |
| Clamp Device Hole-through Diameter | mm | 340 |
| Oil Pump Output Volume | ml/r | 87+63+25 |
| Max Pressure | MPa | 25 |
| Tank Capacity | L | 320 |
| Engine(Cummins) | 6BTA5.9-C180 | |
| Power | kW | 132 |
| Rotary Speed (Max.) | rpm | 2200 |
| Track Chassis Base | ||
| Walk Speed | Km/h | 1.2 |
| Unit Pressure | MPa | ＜0.05 |
| Climb Ability | °C | ≯20 |
